Universal test
Back

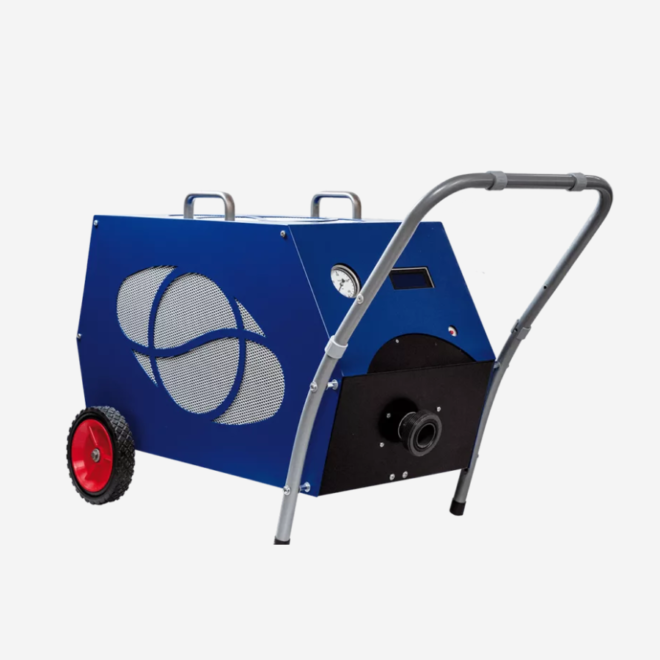

Qmax Tester is a unique device for on-site testing and heat pump optimisation. Capable of performing various performance measurements, Qmax Tester is primarily designed to optimise particular heat pump’s installation. The cost savings can reach 30% through increased heat pump’s heating output and COP with not changed power consumption.

STANDARD EQUIPMENT AND ACCESSORIES

Standart equipment:

  • Qmax Tester
  • User Manual
  • Complete water connection kit

Installation options:

  • Mobile


Completely portable Qmax Tester is a unique device for measurement and optimisation of heat pump‘s performance, ready to assist pool specialists on site.

MOBILE POOL SPECIALIST

Qmax Tester is a unique device for on-site testing and heat pump optimisation. Capable of performing various performance measurements, Qmax Tester is primarily designed to optimise particular heat pump’s installation. The cost savings can reach 30% through increased heat pump’s heating output and COP with not changed power consumption.

TRUE RESULTS

Qmax is connected to water way between the heat pump and the pool. As the water fl ows through the device, Qmax performs detailed testing, displaying all technical data and performs full optimisation of the heat pump. In no more than 15 minutes!

PERFORMANCE OPTIMIZATION

With Qmax Tester it is possible to adjust and optimise the water flow for a particular heat pump in real time. Qmax Tester can be applied to brand-new or existing installations, increasing the actual performance of a heat pump by up to 30% without the change in power consumption.

DIGITAL DISPLAY

Qmax Tester is equipped with 4’’ digital display, on which 6 different measurements and 8 different values are shown in real time.


One of the most problematic aspects of today’s industry are misleading performance results. Heating outputs and COPs are unreliably increased by up to 40%. This harms both the consumer and the heat pump’s image. To disclose false claims and to show real data, Microwell has designed Qmax Tester.

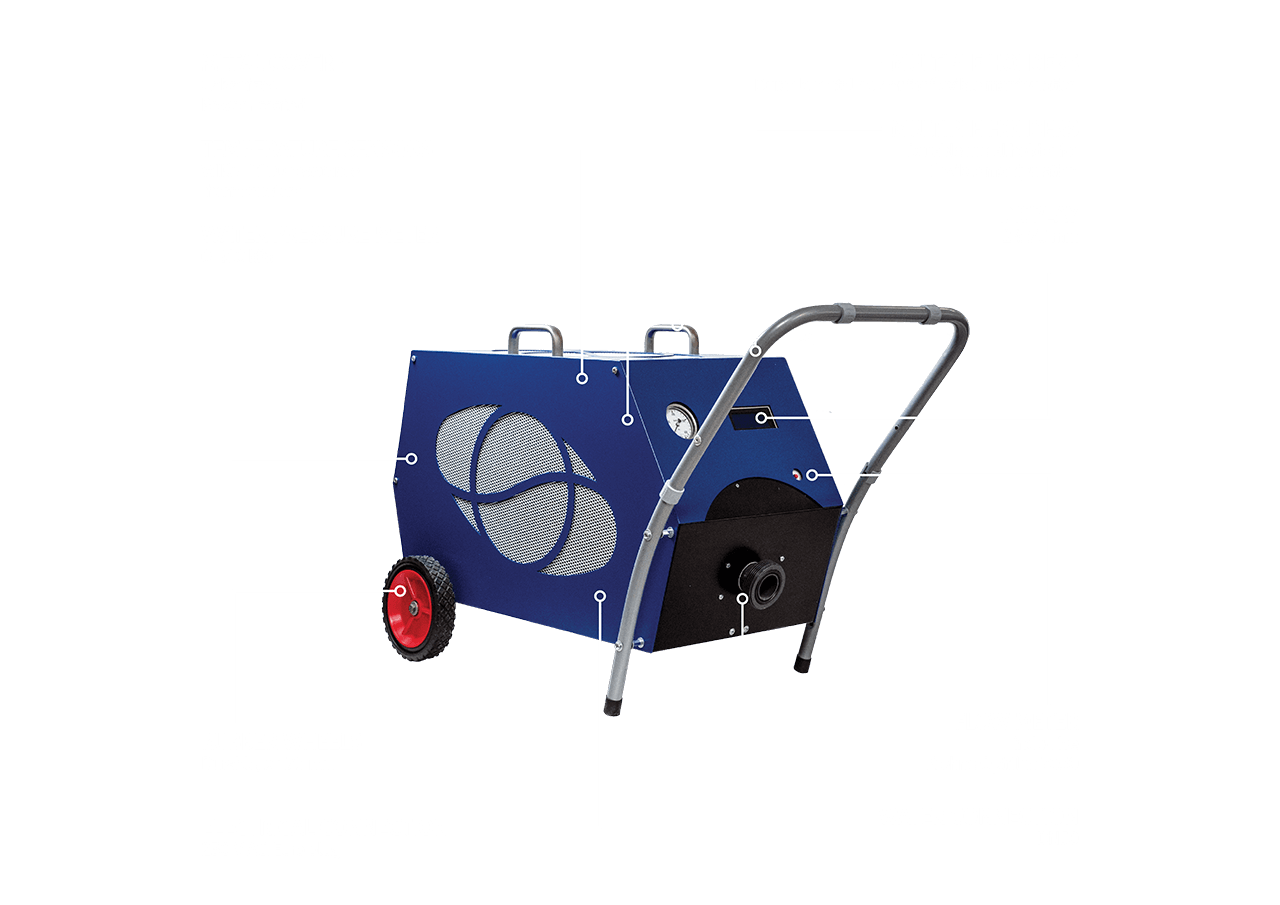

Measured data

  • Water temperature input
  • Water temperature output
  • Heat pump’s voltage
  • Heat pump’s electrical current
  • Water flow
  • Heating or cooling output
  • Heat pump’s power consumption
  • COP or EER
  • Water pressure and pressure loss

Want to konw more about technical data just click.

Highlights

- Microwell

PRODUCT VIDEO:

Read more
